Öhlins Alfa Romeo Giulia Q / GTA / GTAm trackday suspension

naast de Öhlins DFV sport suspension kits hebben Madeno suspension engineers nu ook een ultra
high-performance Öhlins TTX Raceline trackday suspension kit voor de Alfa Giulia Q / GTA / GTAm
sport machines ontwikkeld.

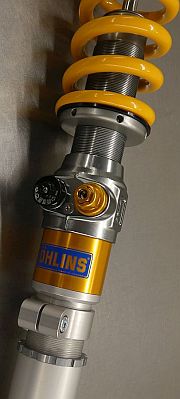

de volledig onafhankelijk  2- / 3- & 4- weg verstelbare Öhlins TTX36 schokdempers zijn standaard
voorzien van motorsport DNA en verschaffen de Giulia Q / GTA / GTAm sport machines fenomenale
rijeigenschappen welke gecombineerd worden met een exceptionele handling & track performance.

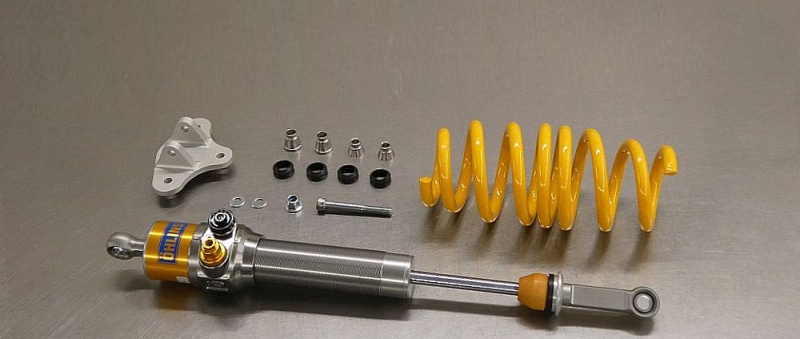

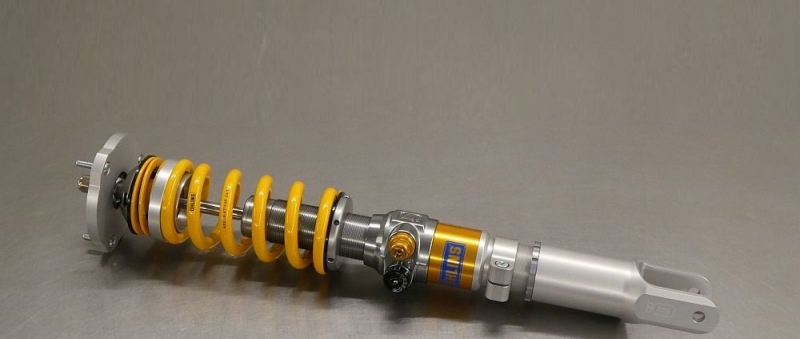

features Madeno/Öhlins Alfa Giulia Q / GTA / GTAm trackday suspension

•  Öhlins ultra high performance TTX technology
•  dampers performed with motorsport DNA inside
•  uncompromising performance, quality and reliability
•  superior road & track handling performances
•  exceptional levels of damping control and refinement
•  2-way fully independent compression & rebound adj.
•  optional 3- and 4- way adjustable damper upgrades
•  custom hand built with ultra low-friction components
•  tailored damper valvings on request available
•  individually dyno tested dampers after built
•  very compact damper design with integrated reservoirs
•  ultra lightweight aluminum anodised damper bodies
•  mounting eyes equipped with motorsport bearings
•  CNC machined alu. front top mounts with bearings
•  CNC machined alu. rear damper mounting brackets
•  CNC machined alu. adj. front lower damper brackets
•  CNC machined alu. adj. front anti-roll bar brackets
•  front aluminum adjustable anti-roll bar drop links
•  full adjustable front & -20mm rear lowered ride-heights
•  front linear main springs supported with helper springs
•  rear Corsa springs with increased spring rates
•  rear coilover system with custom spring rates available
•  customized front & rear springs available on request
•  deactivation kit to delete electronic factory dampers
•  no road approvals documents available (track use only)
•  fully serviceable & rebuildable by Madeno Racing

contact  Leo van der Maden  voor meer gedetailleerde informatie, montage faciliteiten en tailor-made
geometrie setup services

T.  0031 (0)187 641144  /  E.  [email protected]
