Madeno Racing

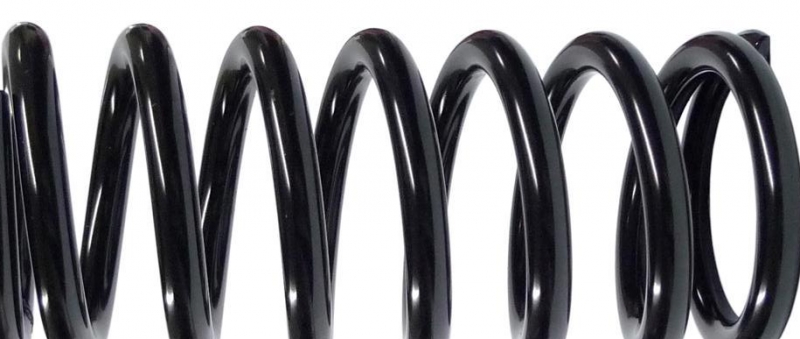

Madeno Rally springs are made from the highest quality Chrome Vanadium, Silicon Chrome, Silicon Magnesium ground bar. All springs prior to finishing undergo tightly controlled hardening and tempering processes to ensure minimum decarbonisation, followed by shot peening which increases fatigue life of
the spring.

1.9 Inch ID (48.5mm) Madeno Rally & Rallycross springs
spring lenght  06 Inch. (152.4mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)
spring lenght  07 Inch  (177.8mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)
spring lenght  08 Inch  (203.2mm)  available spring rates  080 lbs - 450 lbs  (014 - 079 N/mm)
spring lenght  09 Inch  (228.6mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)
spring lenght  10 Inch  (254.0mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)

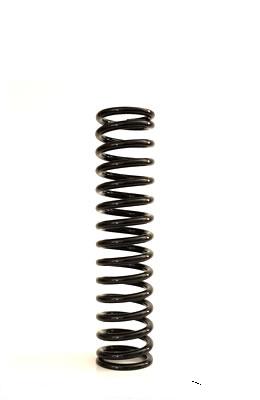

spring lenght  11 Inch  (279.4mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)
spring lenght  12 Inch  (304.8mm)  available spring rates  080 lbs - 400 lbs  (014 - 070 N/mm)
spring lenght  14 inch  (355.6mm)  available spring rates  100 lbs - 100 lbs  (018 - 018 N/mm)

helper springs  2.0 Inch (050.8mm) lenght.  spring rate  7 lbs (1.22 N/mm)
helper springs  4.0 Inch (101.6mm) lenght.  spring rate  7 lbs (1.22 N/mm)

2.0 Inch ID (51.0mm) Madeno Rally & Rallycross springs
spring lenght  05 Inch (127.0mm)  available spring rates  200 lbs - 1500 lbs  (035 - 263 N/mm)

helper springs  2.0 Inch (050.8mm) lenght. spring rate 7 lbs (1.22 N/mm)
helper springs  4.0 Inch (101.6mm) lenght. spring rate 7 lbs (1.22 N/mm)

2.25 Inch ID (57.1mm) Madeno Rally & Rallycross springs
spring lenght  04.0 Inch  (101.6mm)  available spring rates  150 lbs - 2000 lbs (26 - 350 N/mm)
spring lenght  05.0 Inch  (127.0mm)  available spring rates  120 lbs - 2000 lbs (21 - 350 N/mm)
spring lenght  06.0 Inch  (152.4mm)  available spring rates  100 lbs - 2500 lbs (18 - 438 N/mm)
spring lenght  07.0 Inch  (177.8mm)  available spring rates  070 lbs - 2000 lbs (12 - 350 N/mm)
spring lenght  08.0 Inch  (203.2mm)  available spring rates  090 lbs - 1400 lbs (16 - 245 N/mm)
spring lenght  09.0 Inch  (228.6mm)  available spring rates  080 lbs - 1000 lbs (14 - 175 N/mm)
spring lenght  10.0 Inch  (254.0mm)  available spring rates  100 lbs - 0400 lbs (18 - 070 N/mm)
spring lenght  10.5 Inch  (266.7mm)  available spring rates  075 lbs - 1000 lbs (13 - 175 N/mm)
spirng lenght  12.0 Inch  (304.8mm)  available spring rates  050 lbs - 0600 lbs (09 - 105 N/mm)

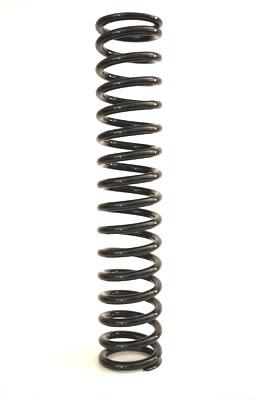

spring lenght  14.0 Inch  (355.6mm)  available spring rates  060 lbs - 0450 lbs (11 - 079 N/mm)
spring lenght  16.0 Inch  (406.4mm)  available spring rates  060 lbs - 0150 lbs (11 - 026 N/mm)

helper springs  2.0 Inch (050.8mm) lenght. spring rates  4 lbs - 450 lbs (0.07 - 079 N/mm)
helper springs  4.0 Inch (101.6mm) lenght. spring rates  4 lbs - 230 lbs (0.07 - 040 N/mm)
helper springs  8.0 Inch (203.2mm) lenght. spring rates  4 lbs - 004 lbs (0.07 - 0.07 N/mm)

2.50 Inch ID (63.5mm) Madeno Rally & Rallycross springs
spring lenght  06.0 Inch (152.4mm)  available spring rates  200 lbs - 1000 lbs (35 - 175 N/mm)
spring lenght  07.0 Inch (177.8mm)  available spring rates  200 lbs - 0800 lbs (35 - 140 N/mm)
spring lenght  08.0 Inch (203.2mm)  available spring rates  150 lbs - 1000 lbs (26 - 175 N/mm)
spring lenght  09.0 Inch (228.6mm)  available spring rates  150 lbs - 0500 lbs (26 - 088 N/mm)
spring lenght  10.5 Inch (266.7mm)  available spring rates  120 lbs - 0600 lbs (21 - 105 N/mm)
spring lenght  12.0 Inch (304.8mm)  available spring rates  050 lbs - 0400 lbs (09 - 070 N/mm)
spring lenght  14.0 Inch (355.6mm)  available spring rates  120 lbs - 0450 lbs (21 - 079 N/mm)

helper springs  2.0 Inch (050.8mm) lenght. spring rates 4 lbs - 280 lbs (0.7 - 49 N/mm)
helper springs  4.0 Inch (101.6mm) lenght. spring rates 4 lbs - 150 lbs (0.7 - 26 N/mm)

61mm ID (metric) Madeno Rally & Rallycross springs
spring lenght    80mm   available spring rates  020 - 300 N/mm
spring lenght  100mm   available spring rates  020 - 400 N/mm
spring lenght  120mm   available spring rates  050 - 440 N/mm
spring lenght  130mm   available spring rates  050 - 400 N/mm
spring lenght  140mm   available spring rates  050 - 400 N/mm
spring lenght  150mm   available spring rates  050 - 400 N/mm
spring lenght  180mm   available spring rates  030 - 150 N/mm
spring lenght  200mm   available spring rates  030 - 150 N/mm
spring lenght  220mm   available spring rates  040 - 100 N/mm
spring lenght  250mm   available spring rates  025 - 150 N/mm
spring lenght  300mm   available spring rates  025 - 150 N/mm

helper springs  110mm free lenght.  spring rate  1 N/mm

tender springs   65mm free lenght.  spring rate   30 N/mm
tender springs   70mm free lenght.  spring rates 40 - 50 - 65 N/mm
tender springs   80mm free lenght.  spring rate   20 N/mm
tender springs 100mm free lenght.  spring rate   20 N/mm


custom made Madeno Rally & Rallycross springs made to order
bespoke Rally and Rallycross springs can be manufactured in all sizes and dimensions on request
  • 48mm ID / 60mm ID / 61mm ID / 64mm ID / 65mm ID / 70mm ID / 75mm ID / 80mm ID / 90mm ID
  • 1.9" ID / 2.0" ID / 2.25" ID / 2.5" ID / 3.0" ID
