Madeno Racing
Authorised Eibach distributor Madeno Racing supplies the full range Eibach ERS springs
and suspension components for all motorsport applications.

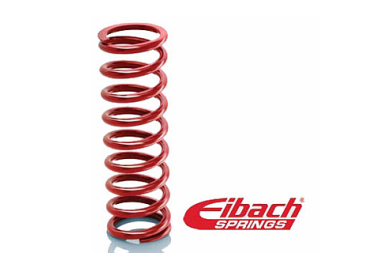

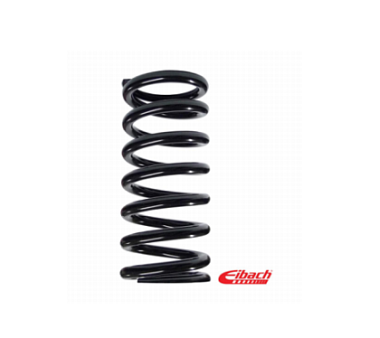

1.88" ID (48mm) Eibach ERS linear competition main & helper springs
spring length 8.00 Inch (203mm) available spring rates 100 - 350 lbs (18 - 61 N/mm)
spring lenght 10.00 Inch (254mm) available spring rates 050 - 450 lbs (09 - 79 N/mm)
helper springs 188 lenght 2.98 Inch (76mm). spring rate 12 lbs (2 N/mm)

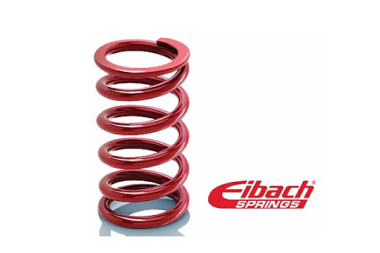

2.00" ID (51mm) Eibach ERS linear competition main & helper springs
spring lenght 4.00 Inch (102mm) available spring rates 350 - 3500 lbs (61 - 613 N/mm)
spring lenght 5.00 Inch (127mm) available spring rates 250 - 2400 lbs (44 - 420 N/mm)

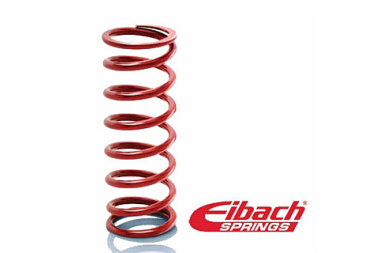

2.25" ID (57mm) Eibach ERS linear competition main, tender & helper springs
spring lenght 4.00 Inch (102mm) available spring rates 450 - 3400 lbs (79 - 595 N/mm)
spring lenght 5.00 Inch (127mm) available spring rates 350 - 4100 lbs (61 - 718 N/mm)
spring lenght 6.00 Inch (152mm) available spring rates 125 - 2200 lbs (22 - 385 N/mm)
spring lenght 7.00 Inch (178mm) available spring rates 200 - 1100 lbs (35 - 193 N/mm)
spring lenght 8.00 Inch (203mm) available spring rates 150 - 1000 lbs (26 - 175 N/mm)
spring lenght 9.00 Inch (229mm) available spring rates 175 - 0900 lbs (31 - 158 N/mm)
tender springs 2.71 Inch (69mm) - 4.26 (108mm) lenght. spring rates 150 - 300 lbs (26 - 53 N/mm)
helper springs 225 lenght 3.05 Inch (78mm). spring rate 12 lbs (2 N/mm)
2.50" ID (64mm) Eibach ERS linear competition main, tender & helper springs
spring lenght 4.00 Inch (102mm) available spring rates 400 - 0800 lbs (70 - 140 N/mm)
spring lenght 6.00 Inch (152mm) available spring rates 400 - 1450 lbs (70 - 254 N/mm)
spring lenght 7.00 Inch (178mm) available spring rates 275 - 1100 lbs (48 - 193 N/mm)
spring lenght 8.00 Inch (203mm) available spring rates 150 - 1200 lbs (26 - 210 N/mm)
spring lenght 10.00 Inch (254mm) available spring rates 100 - 0800 lbs (18 - 140 N/mm)
spring lenght 12.00 Inch (305mm) available spring rates 080 - 0800 lbs (14 - 140 N/mm)
spring lenght 14.00 Inch (356mm) available spring rates 080 - 0650 lbs (14 - 114 N/mm)
spring lenght 16.00 Inch (406mm) available spring rates 200 - 0750 lbs (35 - 131 N/mm)
tender springs 2.02 Inch (51mm) - 3.94 (100mm) lenght. spring rates 150 - 1300 lbs (26 - 228 N/mm)

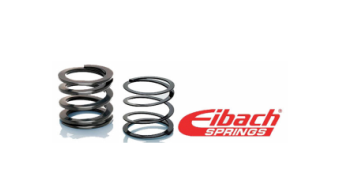

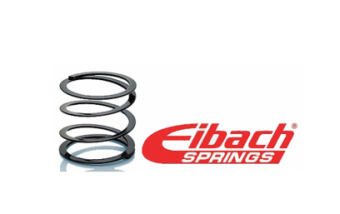

helper springs 250 lenght 3.03 Inch (77mm) spring rate 11 lbs (2 N/mm)
helper springs 250T lenght 6.00 Inch (152mm) spring rate 05 lbs (1 N/mm)
3.00" ID (76mm) Eibach ERS linear competition main, tender & helper springs
spring lenght 4.00 Inch (102mm) available spring rates 250 - 600 lbs (44 - 106 N/mm)
spring lenght 6.00 Inch (152mm) available spring rates 100 - 600 lbs (18 - 106 N/mm)
spring lenght 8.00 Inch (203mm) available spring rates 100 - 600 lbs (18 - 106 N/mm)
spring lenght 10.00 Inch (254mm) available spring rates 100 - 300 lbs (18 - 053 N/mm)
spring lenght 12.00 Inch (305mm) available spring rates 100 - 600 lbs (18 - 106 N/mm)
spring lenght 14.00 Inch (356mm) available spring rates 125 - 700 lbs (22 - 123 N/mm)
spring lenght 16.00 Inch (406mm) available spring rates 075 - 800 lbs (13 - 140 N/mm)
spring lenght 18.00 Inch (457mm) available spring rates 200 - 800 lbs (35 - 140 N/mm)
tender springs 4.72 Inch (120mm) lenght. spring rate 50 lbs ( 9 N/mm)
helper springs 300 lenght 4.85 Inch (123mm) spring rate 6 lbs (1 N/mm)
3.75" ID (95mm) Eibach ERS linear competition main & helper springs
spring lenght 8.00 Inch (203mm) available spring rates 300 - 300 lbs (053 - 053 N/mm)
spring lenght 10.00 Inch (254mm) available spring rates 250 - 500 lbs (044 - 088 N/mm)
spring lenght 12.00 Inch (305mm) available spring rates 200 - 700 lbs (035 - 123 N/mm)
spring lenght 14.00 Inch (356mm) available spring rates 300 - 450 lbs (053 - 079 N/mm)
spring lenght 18.00 Inch (457mm) available spring rates 700 - 800 lbs (123 - 140 N/mm)
spring lenght 20.00 Inch (508mm) available spring rates 300 - 750 lbs (053 - 131 N/mm)
spring lenght 22.00 Inch (559mm) available spring rates 300 - 800 lbs (053 - 140 N/mm)
spring lenght 24.00 Inch (610mm) available spring rates 300 - 800 lbs (053 - 140 N/mm)
spring lenght 33.00 Inch (838mm) available spring rates 115 - 130 lbs (020 - 023 N/mm)
helper springs 375 lenght 6.07 Inch (154mm) spring rate 45 lbs (8 N/mm)
60mm ID (metric) Eibach ERS linear competition main, tender & helper springs
spring lenght 80mm available spring rates 100 - 300 N/mm
spring lenght 100mm available spring rates 070 - 800 N/mm
spring lenght 120mm available spring rates 040 - 360 N/mm
spring lenght 140mm available spring rates 050 - 500 N/mm
spring lenght 170mm available spring rates 030 - 300 N/mm
spring lenght 180mm available spring rates 030 - 200 N/mm
spring lenght 200mm available spring rates 030 - 120 N/mm
spring lenght 250mm available spring rates 025 - 125 N/mm
spring lenght 300mm available spring rates 020 - 100 N/mm
spring lenght 350mm available spring rates 020 - 055 N/mm
tender springs 60mm ID 11 - 124mm lenght. spring rates 002 - 120 N/mm
helper spring 60mm ID 75mm lenght. spring rate 002 N/mm
65mm ID (metric) Eibach ERS linear competition main springs
spring lenght 180mm available spring rates 059 - 118 N/mm
spring lenght 200mm available spring rates 039 - 157 N/mm
spring lenght 230mm available spring rates 034 - 034 N/mm
spring lenght 250mm available spring rates 049 - 098 N/mm
70mm ID (metric) Eibach ERS linear competition main, tender & helper springs
spring lenght 200mm available spring rates 050 - 120 N/mm
spring lenght 225mm available spring rates 050 - 120 N/mm
spring lenght 250mm available spring rates 040 - 120 N/mm
spring lenght 300mm available spring rates 020 - 060 N/mm
spring lenght 350mm available spring rates 020 - 060 N/mm
tender springs 70mm ID 60 - 120mm lenghts. spring rates 15 - 60 N/mm
helper spring 70mm ID 93mm lenght. spring rate 3 N/mm
Formula 3 Eibach ERS 36mm ID racing springs
F3 Standard lenghts 121 - 141mm available spring rates 070 - 350 N/mm
F3 Short lenghts 058 - 111mm available spring rates 105 - 228 N/mm

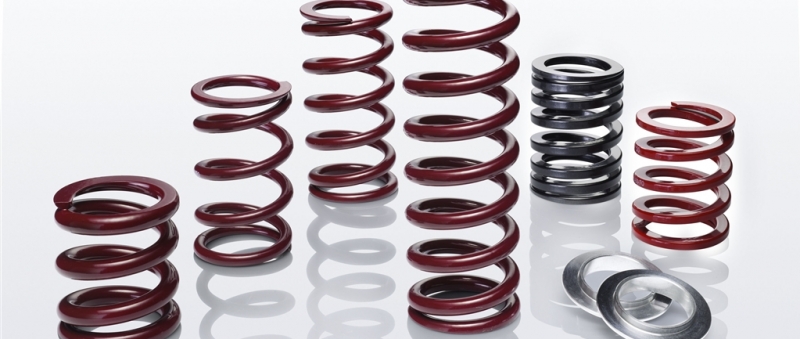

Eibach ERS racing suspension components

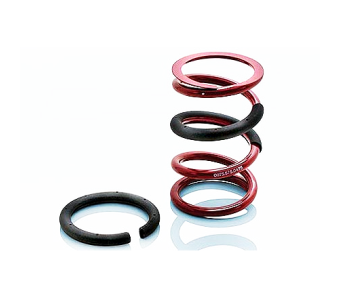

ECS coil sleeves. lenghts 10.31 - 16.50 Inch (262 - 419mm) Ø 2.50 - 6.00 Inch

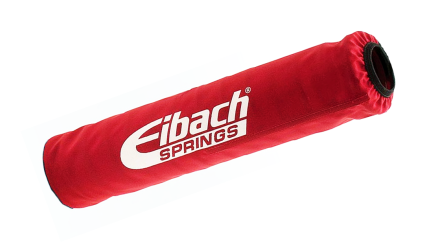

ESB spring bags. spring diameter 2.50 - 5.00 Inch (57 - 127mm) different lenghts available

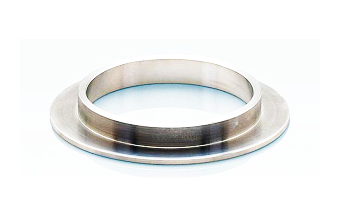

ESL spring locaters OD 350 - 375 (89 - 95mm) ID 4.000 - 4.375 (102 - 111mm)

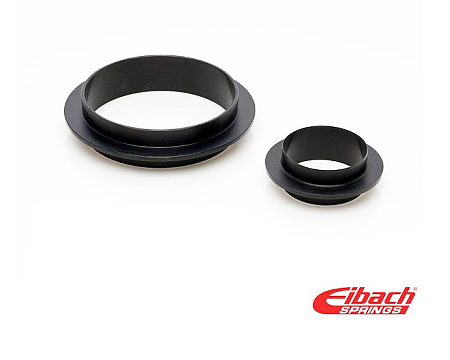

ERS spring dividers 1.88 / 2.25 / 2.50 / 3.00 / 3.75 Inch available
ERS spring dividers 60mm & 70mm metric range
ERS spring perch adapter 60mm to 2.50 Inch (60 - 64mm)
ERS spring isolator 2.25 / 2.50 / 3.00 Inch available

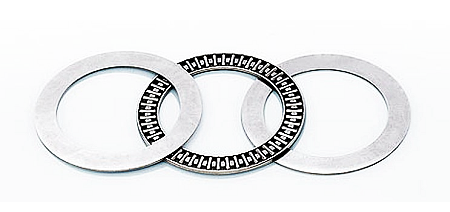

TRB torsion release bearings 1.88 / 2.00 / 2.25 / 2.50 / 3.00 Inch available

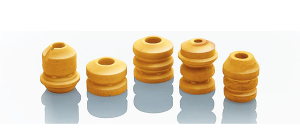

EBS bump stops lenghts 40 - 70mm available
EBS bump stops. available inside diameters ID 09 - 23mm
EBS bump stops. available outside diameters OD 48 - 60mm
