Authorised Eibach distributor Madeno Racing supplies the full range Eibach ERS motorsport springs
and suspension components for Rally, Rallycross & Off-Road applications.

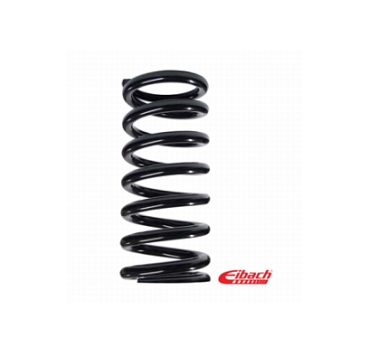

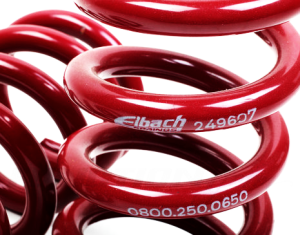

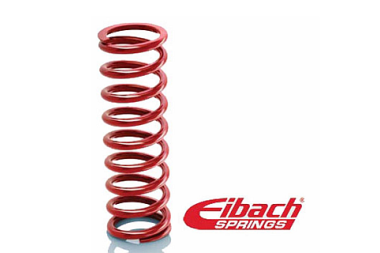

1.88" ID (48mm)  Eibach ERS linear competition main & helper springs
spring length    8.00 Inch (203mm)  available spring rates  100 - 350 lbs (18 - 61 N/mm)
spring lenght  10.00 Inch (254mm)  available spring rates  050 - 450 lbs (09 - 79 N/mm)

helper springs 188  lenght 2.98 Inch (76mm) spring rate  12 lbs (2 N/mm)

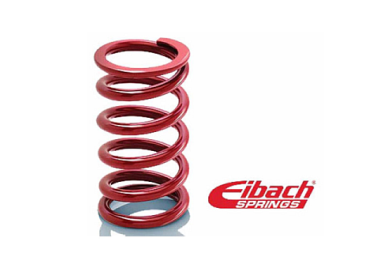

2.00" ID (51mm)  Eibach ERS linear competition main & helper springs
spring lenght   4.00 Inch (102mm)  available spring rates  350 - 3500 lbs (61 - 613 N/mm)
spring lenght   5.00 Inch (127mm)  available spring rates  250 - 2400 lbs (44 - 420 N/mm)

2.25" ID (57mm) Eibach ERS linear competition main, tender & helper springs
spring lenght   4.00 Inch (102mm)  available spring rates  450 - 3400 lbs (79 - 595 N/mm)
spring lenght   5.00 Inch (127mm)  available spring rates  350 - 4100 lbs (61 - 718 N/mm)
spring lenght   6.00 Inch (152mm)  available spring rates  125 - 2200 lbs (22 - 385 N/mm)
spring lenght   7.00 Inch (178mm)  available spring rates  200 - 1100 lbs (35 - 193 N/mm)
spring lenght   8.00 Inch (203mm)  available spring rates  150 - 1000 lbs (26 - 175 N/mm)
spring lenght   9.00 Inch (229mm)  available spring rates  175 - 0900 lbs (31 - 158 N/mm)

tender springs  2.71 Inch (69mm) - 4.26 (108mm) lenght. spring rates 150 - 300 lbs (26 - 53 N/mm)

helper springs  225  lenght 3.05 Inch (78mm) spring rate  12 lbs (2 N/mm)

2.50" ID (64mm) Eibach ERS linear competition main, tender & helper springs
spring lenght   4.00 Inch (102mm)  available spring rates  400 - 0800 lbs (70 - 140 N/mm)
spring lenght   6.00 Inch (152mm)  available spring rates  400 - 1450 lbs (70 - 254 N/mm)
spring lenght   7.00 Inch (178mm)  available spring rates  275 - 1100 lbs (48 - 193 N/mm)
spring lenght   8.00 Inch (203mm)  available spring rates  150 - 1200 lbs (26 - 210 N/mm)
spring lenght 10.00 Inch (254mm)  available spring rates  100 - 0800 lbs (18 - 140 N/mm)
spring lenght 12.00 Inch (305mm)  available spring rates  080 - 0800 lbs (14 - 140 N/mm)
spring lenght 14.00 Inch (356mm)  available spring rates  080 - 0650 lbs (14 - 114 N/mm)
spring lenght 16.00 Inch (406mm)  available spring rates  200 - 0750 lbs (35 - 131 N/mm)

tender springs  2.02 Inch (51mm) - 3.94 (100mm) lenght. spring rates  150 - 1300 lbs (26 - 228 N/mm)

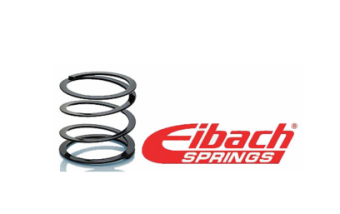

helper springs 250    lenght  3.03 Inch (77mm)    spring rate  11 lbs (2 N/mm)
helper springs 250T  lenght  6.00 Inch (152mm)  spring rate  05 lbs (1 N/mm)

3.00" ID (76mm) Eibach ERS linear competition main, tender & helper springs
spring lenght   4.00 Inch (102mm)  available spring rates  250 - 600 lbs (44 - 106 N/mm)
spring lenght   6.00 Inch (152mm)  available spring rates  100 - 600 lbs (18 - 106 N/mm)
spring lenght   8.00 Inch (203mm)  available spring rates  100 - 600 lbs (18 - 106 N/mm)
spring lenght 10.00 Inch (254mm)  available spring rates  100 - 300 lbs (18 - 053 N/mm)
spring lenght 12.00 Inch (305mm)  available spring rates  100 - 600 lbs (18 - 106 N/mm)
spring lenght 14.00 Inch (356mm)  available spring rates  125 - 700 lbs (22 - 123 N/mm)
spring lenght 16.00 Inch (406mm)  available spring rates  075 - 800 lbs (13 - 140 N/mm)
spring lenght 18.00 Inch (457mm)  available spring rates  200 - 800 lbs (35 - 140 N/mm)

tender springs 4.72 Inch (120mm) lenght. spring rate 50 lbs ( 9 N/mm)

helper springs 300   lenght 4.85 Inch (123mm)  spring rate  6 lbs (1 N/mm)

3.75" ID (95mm) Eibach ERS linear competition main & helper springs
spring lenght   8.00 Inch (203mm)  available spring rates  300 - 300 lbs (053 - 053 N/mm)
spring lenght 10.00 Inch (254mm)  available spring rates  250 - 500 lbs (044 - 088 N/mm)
spring lenght 12.00 Inch (305mm)  available spring rates  200 - 700 lbs (035 - 123 N/mm)
spring lenght 14.00 Inch (356mm)  available spring rates  300 - 450 lbs (053 - 079 N/mm)
spring lenght 18.00 Inch (457mm)  available spring rates  700 - 800 lbs (123 - 140 N/mm)
spring lenght 20.00 Inch (508mm)  available spring rates  300 - 750 lbs (053 - 131 N/mm)
spring lenght 22.00 Inch (559mm)  available spring rates  300 - 800 lbs (053 - 140 N/mm)
spring lenght 24.00 Inch (610mm)  available spring rates  300 - 800 lbs (053 - 140 N/mm)
spring lenght 33.00 Inch (838mm)  available spring rates  115 - 130 lbs (020 - 023 N/mm)

helper springs 375   lenght 6.07 Inch (154mm)  spring rate  45 lbs (8 N/mm)

60mm ID (metric) Eibach ERS linear competition main, tender & helper springs
spring lenght    80mm   available spring rates  100 - 300 N/mm
spring lenght  100mm   available spring rates  070 - 800 N/mm
spring lenght  120mm   available spring rates  040 - 360 N/mm
spring lenght  140mm   available spring rates  050 - 500 N/mm
spring lenght  170mm   available spring rates  030 - 300 N/mm
spring lenght  180mm   available spring rates  030 - 200 N/mm
spring lenght  200mm   available spring rates  030 - 120 N/mm
spring lenght  250mm   available spring rates  025 - 125 N/mm
spring lenght  300mm   available spring rates  020 - 100 N/mm
spring lenght  350mm   available spring rates  020 - 055 N/mm

tender springs 60mm ID  11 - 124mm lenght. spring rates  002 - 120 N/mm

helper spring  60mm ID   75mm lenght. spring rate 002 N/mm

65mm ID (metric) Eibach ERS linear competition main springs
spring lenght  180mm   available spring rates  059 - 118 N/mm
spring lenght  200mm   available spring rates  039 - 157 N/mm
spring lenght  230mm   available spring rates  034 - 034 N/mm
spring lenght  250mm   available spring rates  049 - 098 N/mm

70mm ID (metric) Eibach ERS linear competition main, tender & helper springs
spring lenght  200mm   available spring rates  050 - 120 N/mm
spring lenght  225mm   available spring rates  050 - 120 N/mm
spring lenght  250mm   available spring rates  040 - 120 N/mm
spring lenght  300mm   available spring rates  020 - 060 N/mm
spring lenght  350mm   available spring rates  020 - 060 N/mm

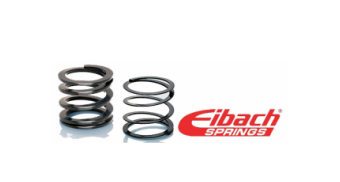

tender springs 70mm ID   60 - 120mm lenghts. spring rates 15 - 60 N/mm

helper spring   70mm ID   93mm lenght.  spring rate  3 N/mm

Eibach ERS rally suspension components

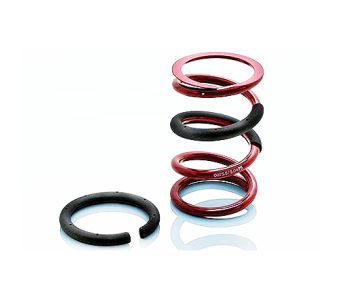

ECS coil sleeves. lenghts  10.31 - 16.50 Inch (262 - 419mm)  Ø 2.50 - 6.00 Inch

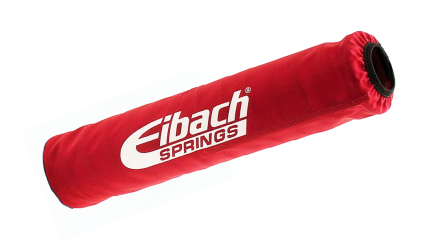

ESB spring bags  spring diameter 2.50 - 5.00 Inch (57 - 127mm) different lenghts available

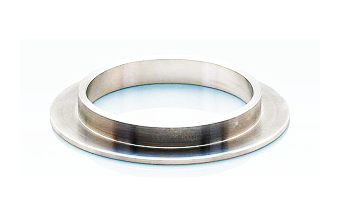

ESL spring locaters OD 350 - 375 (89 - 95mm)  ID 4.000 - 4.375 (102 - 111mm)

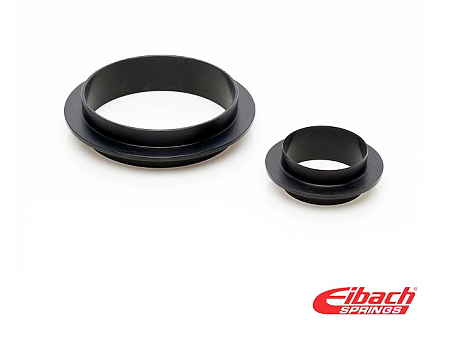

ERS spring dividers  1.88 / 2.25 / 2.50 / 3.00 / 3.75 Inch available
ERS spring dividers  60mm & 70mm metric range

ERS spring perch adapter  60mm to 2.50 Inch (60 - 64mm)

ERS spring isolator 2.25 / 2.50 / 3.00 Inch available

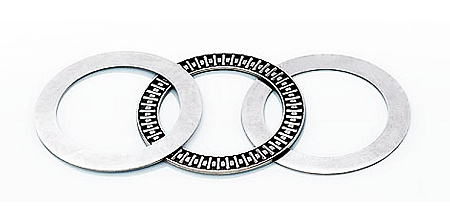

TRB torsion release bearings  1.88 / 2.00 / 2.25 / 2.50 / 3.00 Inch available

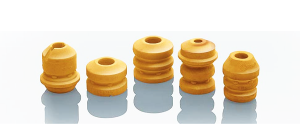

EBS bump stops lenghts  40 - 70mm available
EBS bump stops. available inside diameters    ID  09 - 23mm
EBS bump stops. available outside diameters OD 48 - 60mm
